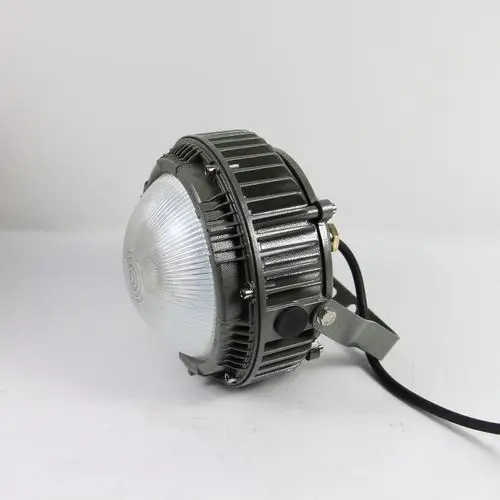

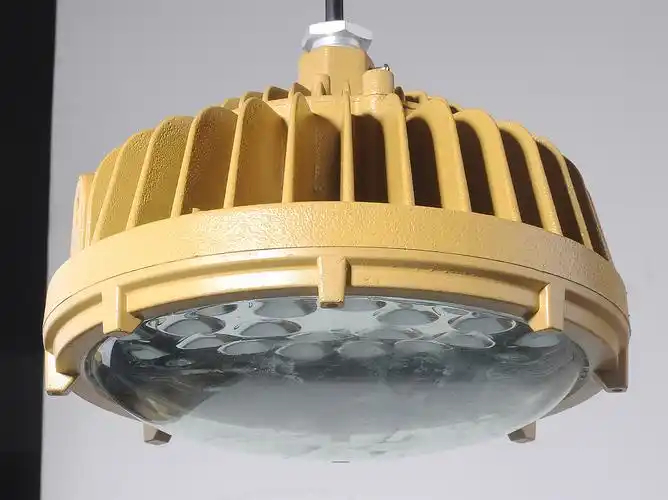

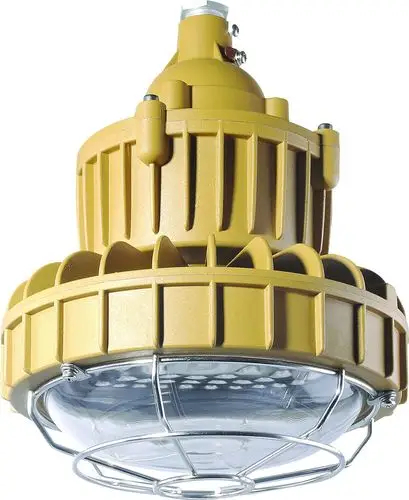

LED Explosion Proof Light
An LED explosion - proof light is a type of lighting fixture designed to operate safely in environments where there is a risk of explosion due to the presence of flammable gases, vapors, or combustible dust. These lights are crucial in industries such as oil and gas, chemical plants, mining, and grain storage facilities.
The main purpose of an LED explosion - proof light is to provide illumination without creating a spark or heat source that could ignite the surrounding explosive atmosphere. LEDs (Light - Emitting Diodes) are used as the light source because they are energy - efficient and generate less heat compared to traditional incandescent or halogen bulbs.
Housing: The housing of an LED explosion - proof light is typically made of robust materials such as cast aluminum or stainless steel. These materials are not only durable but also have good heat - dissipation properties. The housing is designed to be explosion - proof, which means it can contain any internal explosion and prevent the flames or hot gases from escaping and igniting the surrounding atmosphere. It is usually sealed to prevent the ingress of dust and moisture, as well as flammable substances.
Lens: The lens of the light is made of toughened glass or a high - quality plastic material that is impact - resistant and can withstand harsh environmental conditions. The lens is designed to provide good light distribution and protect the LED components inside.
LED Module: The LED module is the heart of the explosion - proof light. It consists of multiple high - power LEDs that are mounted on a circuit board. The LEDs are carefully selected and arranged to provide the desired level of brightness and light distribution. The circuit board is usually designed to handle the specific electrical requirements of the LEDs and may include features such as over - voltage and over - current protection.
Sealing and Gaskets: To ensure the explosion - proof integrity of the light, proper sealing is essential. High - quality gaskets are used to seal the joints between the housing and the lens, as well as other access points such as cable glands. The gaskets are made of materials that can withstand the chemical and physical stresses of the environment and maintain a tight seal over time.
When the LED explosion - proof light is powered on, an electrical current passes through the LED module. The LEDs convert the electrical energy into light energy through a process called electroluminescence. The light is then emitted through the lens, providing illumination in the area.
Since LEDs operate at a relatively low voltage and generate less heat than other types of bulbs, the risk of overheating and causing an explosion is significantly reduced. Additionally, the electrical components inside the light are designed to be intrinsically safe or have appropriate safety features such as explosion - proof enclosures and spark - free switches to prevent any ignition sources.
Energy - Efficiency: LED explosion - proof lights consume significantly less energy than traditional lighting sources. This not only reduces energy costs but also allows for longer operating times in remote or battery - powered applications.
Long Lifespan: LEDs have a much longer lifespan compared to incandescent or halogen bulbs. They can last up to 50,000 hours or more, which means less frequent replacement and reduced maintenance costs.
Safety: As mentioned earlier, the explosion - proof design of these lights makes them ideal for hazardous environments. They provide reliable illumination without the risk of igniting explosive atmospheres.
Brightness and Color Options: LED explosion - proof lights are available in a wide range of brightness levels and color temperatures. This allows users to select the most suitable lighting for their specific applications, whether it's a bright white light for a work area or a warm - colored light for a more comfortable environment.
Oil and Gas Industry: In oil refineries, drilling rigs, and gas production facilities, LED explosion - proof lights are used to illuminate work areas, storage tanks, and pipelines. They can operate in the presence of flammable hydrocarbons and provide a safe lighting solution.
Chemical Plants: Chemical manufacturing plants often have areas where there are explosive vapors or dust. LED explosion - proof lights are used to light up process areas, storage warehouses, and loading docks.
Mining: In underground mines, there is a risk of methane gas explosions. LED explosion - proof lights are used to provide illumination for miners and equipment operators, improving safety and productivity.
Food and Grain Processing: Grain silos and food processing plants may have combustible dust. LED explosion - proof lights are used to ensure proper lighting in these areas while minimizing the risk of dust explosions.
