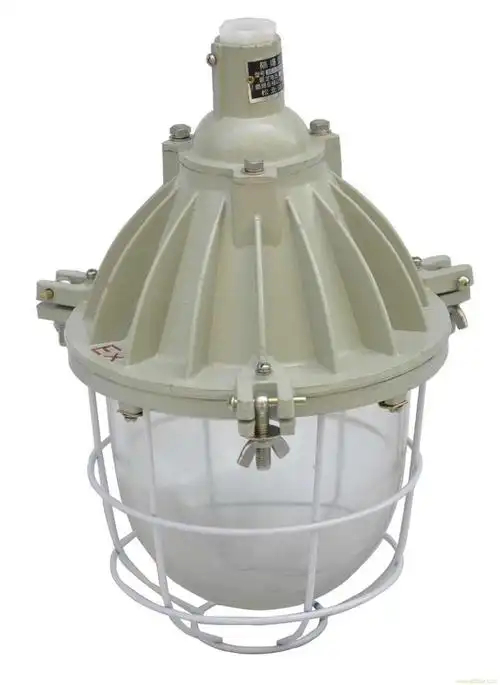

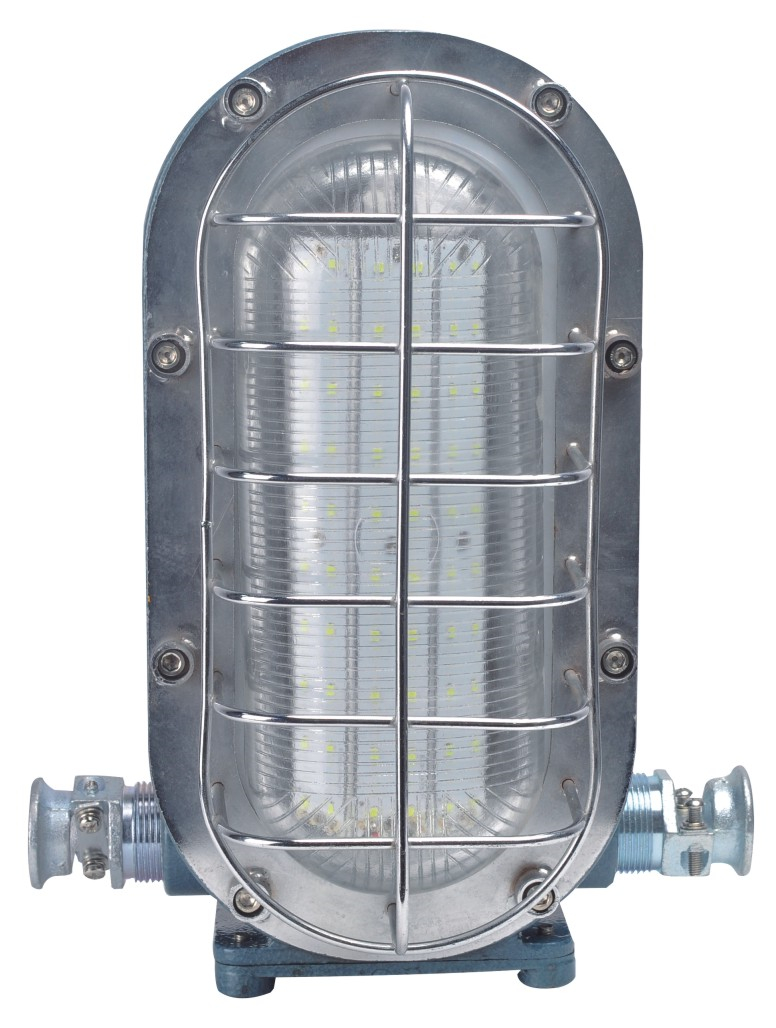

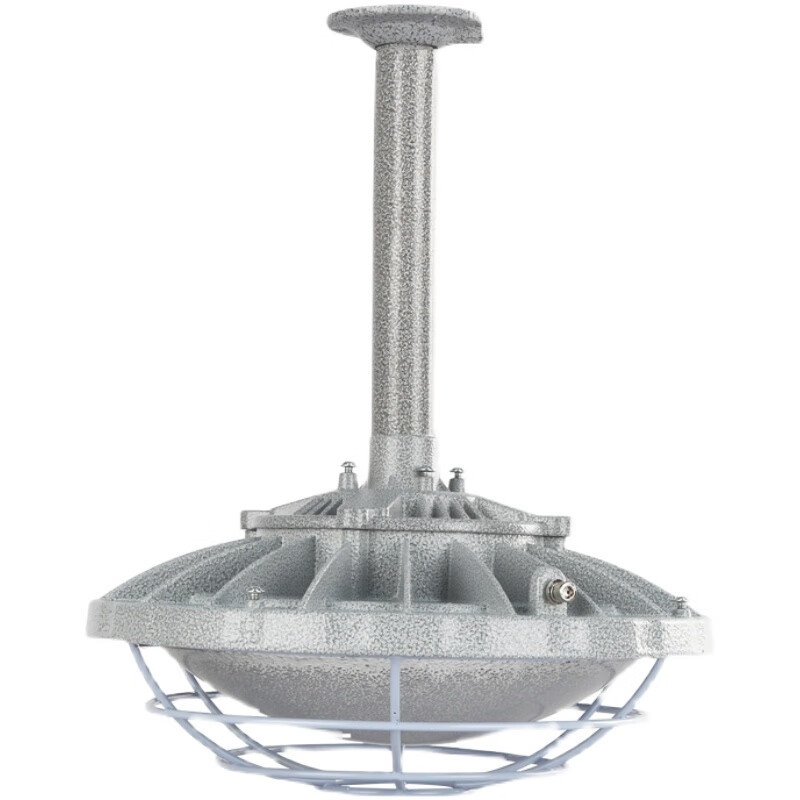

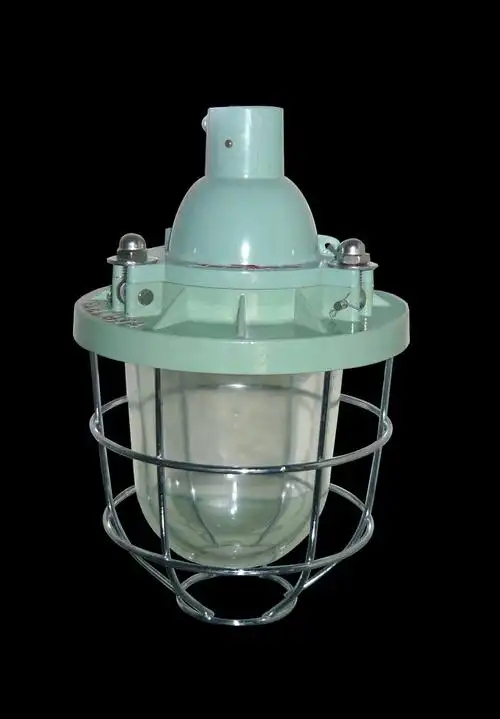

Explosion Proof Explosion Proof Lamp

The housing of an explosion - proof lamp is usually constructed from durable and robust materials such as cast aluminum or stainless steel. These materials have excellent mechanical strength and are resistant to corrosion. The housing is designed to contain any potential explosion that might occur inside the lamp. It has thick walls and a sealed structure to prevent the escape of hot gases and flames that could ignite the surrounding explosive substances.

There are often gaskets and seals around the edges and openings of the housing to ensure a tight enclosure. These gaskets are made of materials that can withstand the temperature and pressure changes that may occur during an explosion and maintain the integrity of the seal over time.

The lens of the explosion - proof lamp is typically made of toughened glass or a high - quality, impact - resistant plastic. The lens serves two main purposes. Firstly, it provides a clear medium for the light to pass through, ensuring efficient illumination. Secondly, it is designed to be strong enough to withstand external impacts and pressures without shattering. In some cases, the lens may have a special coating to enhance light diffusion or to protect against ultraviolet (UV) radiation.

Light Source: The most common light sources used in explosion - proof lamps are LEDs (Light - Emitting Diodes) due to their energy - efficiency and low heat generation. LEDs also have a long lifespan, reducing the need for frequent replacement. In some cases, traditional light sources such as fluorescent or high - intensity discharge (HID) lamps may still be used, but they require more careful engineering to manage heat and potential ignition sources.

Electrical Components: The electrical components inside the lamp, including the ballast (for fluorescent or HID lamps) or the driver (for LED lamps), are designed to be intrinsically safe. They are usually enclosed in a separate compartment within the housing to protect them from the external environment and to prevent any electrical arcing or sparking that could lead to an ignition. The wiring is carefully insulated and routed to avoid any sharp edges or points that could cause wire abrasion and subsequent electrical faults.

 When the explosion - proof lamp is turned on, the electrical current flows through the light source and its associated components. For LED - based lamps, the driver converts the input voltage (usually AC) to the appropriate DC voltage for the LEDs. The LEDs then emit light through the process of electroluminescence.

In the case of traditional light sources like fluorescent lamps, the ballast provides the necessary voltage and current to ionize the gas inside the lamp tube. The ionized gas produces ultraviolet light, which is then converted to visible light by the phosphor coating on the inside of the tube.

The key safety aspect of the explosion - proof lamp's working principle is that it is designed to prevent any electrical or thermal energy from escaping and igniting the external explosive atmosphere. The sealed housing contains any potential explosion, and the electrical components are designed to operate without generating enough heat or sparks to cause an explosion.

Flame - proof Type: This type of explosion - proof lamp is designed to withstand an internal explosion without allowing the flames to propagate outside. The housing is thick and strong enough to contain the explosion, and any gaps or joints are carefully sealed to prevent the escape of hot gases.

Increased Safety Type: These lamps focus on reducing the risk of ignition through enhanced safety measures for the electrical components. The electrical parts are designed to have a higher level of insulation and protection to prevent sparking and overheating.

Pressurized Type: A pressurized explosion - proof lamp maintains a positive pressure inside the housing. Clean air or an inert gas is pumped into the lamp to create a pressure higher than the external environment. This positive pressure prevents the entry of explosive substances into the lamp and reduces the risk of ignition.

Safety: The primary advantage is the enhanced safety they provide in hazardous environments. By preventing the ignition of explosive substances, they protect lives and property.

Durability: Their robust construction allows them to withstand harsh conditions such as high humidity, corrosive chemicals, and mechanical impacts.

Energy - Efficiency: LED - based explosion - proof lamps are energy - efficient, which reduces operating costs and energy consumption.

Versatility: They come in various shapes, sizes, and light intensities, making them suitable for a wide range of applications from small - scale storage areas to large - scale industrial plants.

Petrochemical Industry: In oil refineries, gas processing plants, and petrochemical manufacturing facilities, explosion - proof lamps are used to illuminate areas where flammable hydrocarbons are present. This includes process units, storage tanks, and loading docks.

Mining: Underground mines often have explosive gases such as methane. Explosion - proof lamps are used to light up the tunnels, work areas, and mining equipment to ensure the safety of miners.

Chemical Industry: In chemical plants where there are flammable vapors and dust, these lamps are used to provide illumination in reaction vessels, storage areas, and conveyor belts.

Food and Grain Processing: In food mills and grain silos, where combustible dust can accumulate, explosion - proof lamps are used to ensure a safe lighting environment and prevent dust explosions.
